Meowant Litter Box Sensor Location, Full-Bin Alerts and How to Clear Them
Where the sensors sit on a Meowant self-cleaning litter box depends on the model, and so does what a full-bin alert looks like. Only the Meowant SC10 has a waste drawer full indicator; the SC01, SC02 and SC09 manuals do not describe a full-bin light at all. None of the current Meowant manuals include a "waste bin calibration" step either, so there is nothing to recalibrate. When an alert appears, the fix is to empty the bin, clear whatever is blocking the sensor, check the liner and the floor, then unplug and reconnect.
This guide is based on the official user manuals for the Meowant SC01, SC02, SC09 and SC10, plus the current product pages. It explains where each model's sensors are, what each waste bin alert means, how to clear it, and how to clean the sensor areas without damaging the base. For red, green and blue status lights on the SC01 and SC02, see our SC01 and SC02 red light and reset guide.
Meowant litter box sensor location by model
| Model | Where the sensors are | Source |
|---|---|---|
| SC01 | Weight sensors at the bottom of the base, under the drum. The control panel and indicators are on the front of the base. The product page describes 10 high-precision sensors. | SC01 manual diagram; product page |
| SC02 | The manual does not mark individual sensor positions. The product page describes 9 sensors and an anti-pinch structure, and warns not to put a mat under the box to avoid weighing errors. | SC02 manual; product page |
| SC09 | The manual does not mark individual sensor positions. The product page describes multiple high-precision sensors for weight detection, motion interruption and abnormal alarms. | SC09 manual; product page |
| SC03 | Four-corner weight sensors that stop the unit when a cat approaches. The product page advises against soft mats for accurate readings. | Product page |
| SC10 | An infrared sensor on the front of the base, just below the drum. You reach it by removing the drum. The SC10 uses one in-drum infrared beam, five sets of infrared sensors and a motor-stall alarm; it does not weigh cats. | SC10 manual diagram; product information |
The pattern is simple. The SC01, SC02, SC03 and SC09 detect weight through the base, which is why their manuals and product pages insist on a firm, level floor with nothing underneath. The SC10 detects with infrared, so dust, litter or a bunched liner near the sensor is the first thing to check.
What a waste bin or waste drawer full alert means
Meowant SC10
The SC10 display has a waste drawer icon with two states, according to the LED Display page of its manual:
- Solid white waste drawer icon: the waste drawer is full. Slide the drawer out, dispose of the bag, fit a new liner and slide the drawer back.
- Flashing red waste drawer icon (E1): the infrared sensor is blocked, and the drum stops. The manual's fix: unplug the box, remove the drum and clear dust, litter or anything else blocking the infrared sensor. Then check whether the waste drawer is full and empty it if so.
If E1 keeps returning with an empty drawer, look at the liner. The SC10 manual asks for the liner to be spread evenly inside the waste drawer, and lists an uneven liner among the things to check when the box does not respond to a cat. Use liners made for the model, such as the SC10 litter box liners. Our guide to a drawer that says full when it isn't goes through the same checks in more detail.
Meowant SC01, SC02 and SC09
The manuals for these three models list no full-bin indicator. You empty the waste bin on your own schedule. The SC01 and SC02 manuals recommend replacing the liner every 3 to 5 days, depending on the number and size of your cats. For a starting schedule by cat count, see how often to empty the waste drawer.
The bin-related problem these manuals do cover is waste not making it into the bin. If the drum turns but waste stays behind, check whether the deodorization cover is blocked by the liner, litter or waste. Open the waste bin cover and remove anything in the way. All three manuals give this same fix.
"Waste bin calibration": what to do on a Meowant
People often search for waste bin calibration after seeing the phrase in an app or on another brand's box. On Meowant boxes there is no calibration procedure in the SC01, SC02, SC09 or SC10 manuals, and no calibration menu is described. What the manuals do give is a short routine for when readings seem off:
- Unplug the box. All Meowant manuals ask you to unplug before removing parts or cleaning.
- Clear the bin path. Empty the bin or drawer, refit the liner flat, and check that the deodorization cover (SC01, SC02, SC09) or the infrared sensor (SC10) is not blocked.
- Check the floor. The box should stand on a firm, level surface. The SC01 manual asks you to check that all four foot pads sit at the same level. Mats go in front of the box, never partly or fully under it.
- Reconnect. Plug the box back in. The drum turns a full circle and returns to Home before it is ready.
If your concern is the weight shown in the app rather than the bin, the same routine applies. The SC01, SC02 and SC09 manuals all list "disconnect, check the surface, reconnect and try again" as the fix for weighing problems. The SC09 manual adds that cat movement can cause weight errors of 10 to 20%, so a single reading may not match your cat's actual weight.
How to reset a Meowant litter box after an alert
For almost every alert, a power cycle is the reset: fix the cause, unplug, then plug the box back in and let the drum return to Home.
- SC10: after clearing the infrared sensor or emptying the drawer, refit the drum and both side covers (slide them to OFF to lock), then reconnect.
- SC01 and SC02: after clearing the deodorization cover or reseating the drum, reconnect. A factory reset (hold Clean with Flatten on the SC01, or Clean with Spread on the SC02, for 5 seconds) is only needed if a power cycle does not help, and it means pairing with the app again. The SC01 and SC02 light guide has the full steps.
- SC09: see the SC09 section of our automatic litter box troubleshooting guide.
If the same alert comes back after these steps, contact Meowant customer support rather than opening the base. The manuals say there are no user-serviceable parts inside.
How to clean litter box sensors safely
Sensor areas only need the same care as the rest of the box. The manuals give a few firm rules.
- Unplug first, every time.

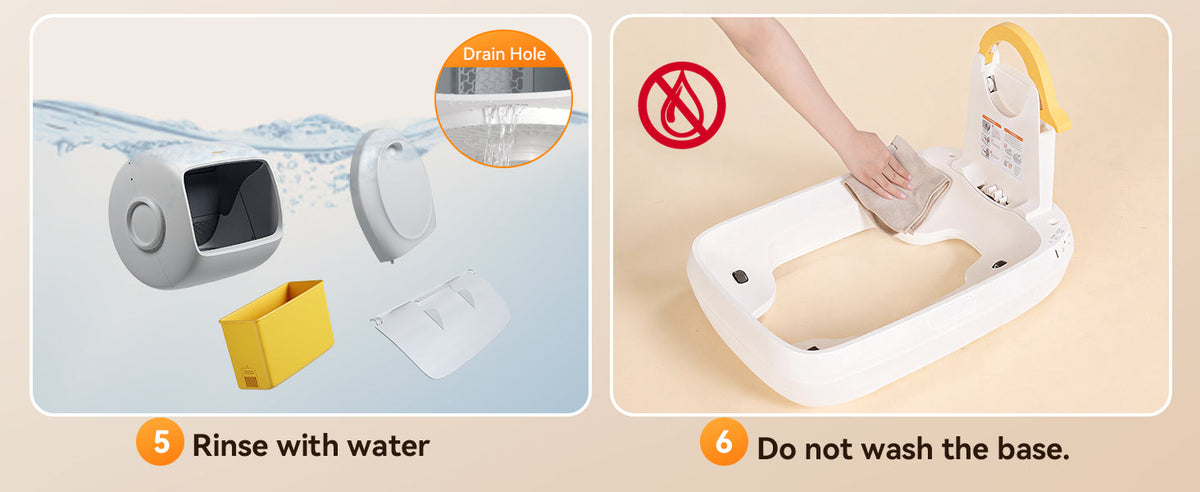

- Keep the base dry. Never rinse or immerse the base in water or other liquid. Wipe it with a soft, slightly damp cloth, then let it dry.
- SC10 infrared sensor: remove the drum and clear dust or litter from the sensor on the base. The SC10 manual also says to avoid soaps, cleaners or chemicals with strong odors or cat-repellent scents such as citrus, lavender or peppermint.
- SC01 underside: move the box by lifting the base with both hands, never by dragging it, and check that the four foot pads sit level.
- Washable parts: the drum and waste bin can be rinsed. Dry every part thoroughly before reassembling.
The SC01 and SC02 manuals recommend cleaning the inside every one to three months, depending on your cats. For a full routine, see our automatic litter box deep cleaning guide.
Placement that keeps sensors reading correctly
Most false readings start with where the box stands. These rules appear across the Meowant manuals:
- Place the box indoors on a firm, level surface, never on carpet. Soft, uneven or unstable flooring can affect detection and weighing.
- Leave a little space around the box so it does not touch any walls.
- Choose a cool, dry spot and reduce exposure to high temperature and humidity.
- Put the litter mat in front of the box, not under it.
- Do not sit on the box or place anything on top of it.
For SC10 owners, the infrared sensing is designed to resist sunlight interference, but the other placement rules still apply. For a broader look at how sensor types work, read how sensors work in self-cleaning litter boxes.
Liner fit and litter level
A liner that bunches above the bin rim can block the deodorization cover on the drum models or the infrared sensor on the SC10. The SC01, SC02 and SC10 manuals ask you to spread the liner evenly and smooth out the edges. Our guide to fitting a liner so it doesn't tear covers this step by step.
Litter level matters for the same reason. Keep litter below the MAX fill line when spread flat; the SC09 and SC10 manuals also mark a MIN line and ask you to stay between the two. Empty the waste bin before you empty all the litter, so the extra litter does not overflow it.
Maintenance schedule from the manuals
| Task | How often | Model |
|---|---|---|
| Replace the liner | Every 3 to 5 days, depending on the number and size of your cats | SC01, SC02 |
| Replace the deodorizer | Every 15 days | SC02 |
| Clean the inside | Every one to three months | SC01, SC02 |
| Check the litter level | Whenever you top up; keep below MAX | All models |
| Replace the liner | One cat: daily in summer, every 2 to 3 days in spring and autumn. Several cats: daily | SC10 |
When sensor data points to a health issue
A clean sensor gives you more reliable visit and weight trends on the models that record weight, which excludes the SC10. According to the Cornell Feline Health Center, changes in litter box habits are often the first sign of a medical problem. More visits than usual, very short or very long visits, or steady weight loss are worth raising with your vet. If a cat is straining and producing little or no urine, seek emergency veterinary care right away. In homes with several cats, it can be hard to tell which cat is affected, so watch each one closely; our guide to litter box competition in multi-cat homes may also help.
Every current Meowant manual is available on the Meowant user manual page.
