Meowant SC01 & SC02 Red Light: Indicator Lights, Weight Limits and Reset Guide

A red light on a Meowant SC01 or SC02 self-cleaning litter box means the unit has stopped or paused and is waiting for something to be fixed. On both models the most common causes are a cat or extra weight in the drum while it is turning, a cover or drum that is not seated, or a cycle you paused with a button. A red light is not an "overweight" warning: neither the SC01 nor the SC02 user manual lists a separate light for a heavy cat.

This guide follows the official Meowant user manuals for the Meowant SC01 (MW-SC01) and the Meowant SC02 (MW-SC02). It covers what every light means, how to clear a red light, how to reset each model, and what the weight ranges in the manuals actually refer to. If you have an SC09 or SC10, use the automatic litter box troubleshooting guide instead, because those models use different lights and codes.

Meowant red light meaning: the short answer

Match what you see to your model:

• SC01, solid red: a Clean, Flatten or Replace cycle is paused; a cat or weight was detected while the drum was rotating; a foreign object came near the drum while it was rotating; or the rear cover is open.
• SC01, solid red with the button lights flashing: the drum is not in place, or there is a motor error.
• SC02, solid red: the side cover is not in place.
• SC02, solid red with both button lights flashing: the drum is not in place, or the motor has stalled.
• SC02, solid red with one button light flashing: cleaning, emptying or spreading is paused.
• SC02, solid red with one button light on: a cat or weight was detected during cleaning, emptying or spreading.

In most cases the light clears once the cat steps out, the cover or drum is put back, or you press the paused button again. The step-by-step fixes are further down.

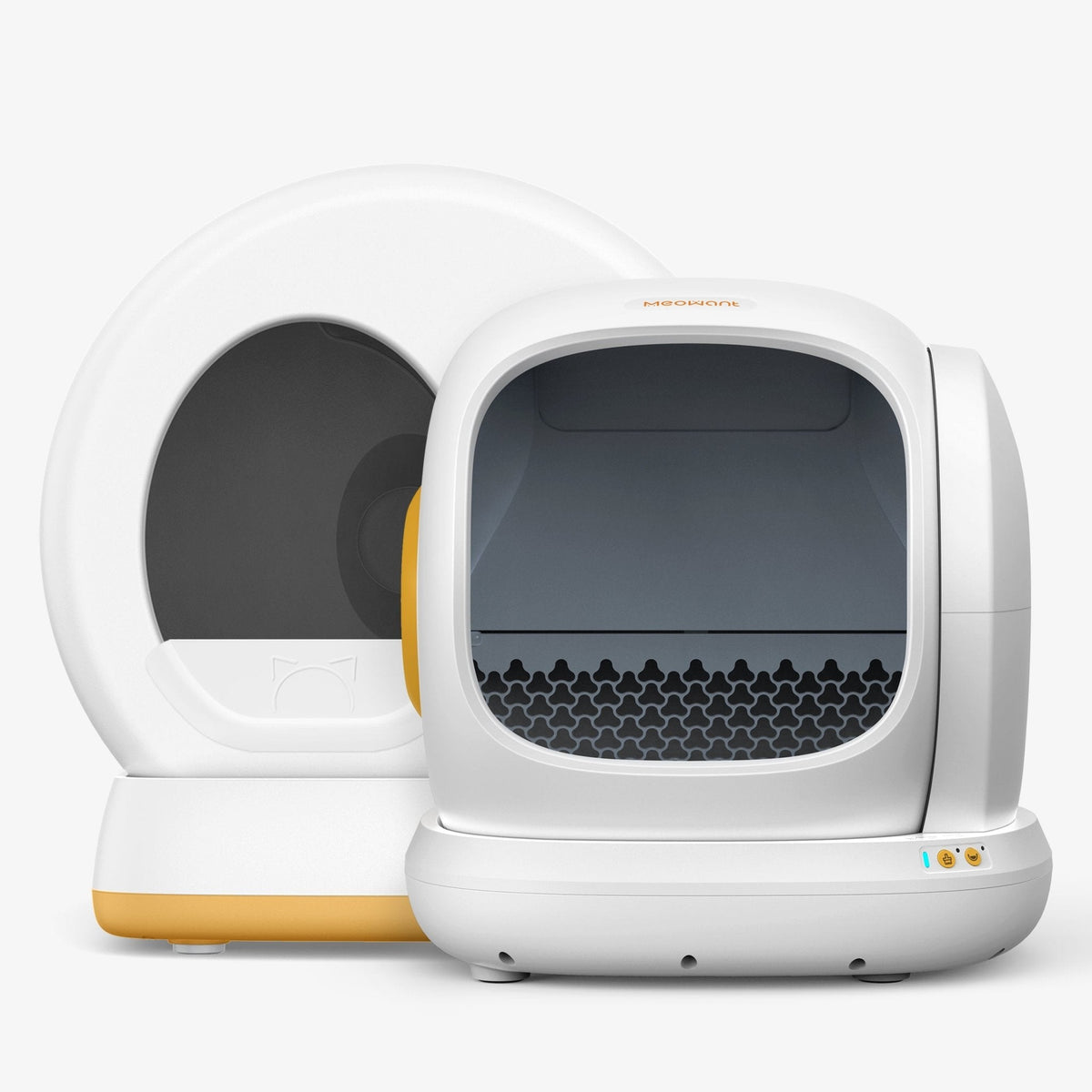

SC01 or SC02? How to tell which model you have

The two boxes look alike from a distance, but the control panels are different, and that is the quickest way to tell them apart.

• SC01: three buttons on the front of the base: Clean, Flatten and Replace. The drum is held in place by a rear cover.
• SC02: two buttons: Clean and Spread. The drum is secured with a rotating shaft lock and a side cover.

If you have lost the paper manual, every current one can be downloaded from the Meowant user manual page.

Meowant SC01 indicator lights

These patterns are taken from the Status Indicators page of the SC01 user manual.

The SC01 button lights follow one simple rule from the manual: a button light stays on while that process is running and flashes when it is paused.

Meowant SC02 indicator lights

These patterns are taken from the Status Indicators page of the SC02 user manual.

How to fix a red light on a Meowant litter box

Work through these checks in order. Each one comes from the setup or troubleshooting section of the SC01 and SC02 manuals.

1. Let the cat or the weight clear

Both models stop the drum when a cat or weight is detected, and both manuals say it resumes rotating after the cat leaves or the weight is removed. A curious cat sniffing at the entrance can pause a cycle more than once. On the SC01, an object coming close to the drum while it turns has the same effect. Do not sit on or place anything on top of the litter box; both manuals warn against it.

2. Check the cover

On the SC01, an open rear cover turns the light solid red. On the SC02, a side cover that is not seated on the base support does the same. Refit it until it sits flush. Neither manual allows opening the top cover while the drum is rotating, so wait for the drum to stop first.

3. Reseat the drum and clear the gear or shaft

Solid red with flashing button lights points to the drum or the motor. Unplug the box, remove the drum and look for anything caught at the gear of the base (SC01) or at the rotating shaft (SC02). A hardened clump or a folded liner is a typical culprit. Put the drum back so it sits without shaking; on the SC02, lock the rotating shaft lock and refit the side cover. Then reconnect. When it powers up, the drum turns a full circle and returns to Home before it is ready. On the SC01, make sure the power cable is not caught in the rotating shaft.

4. Resume a paused cycle

If you pressed a button mid-cycle, the light stays red until you press it again. On the SC01 that is Clean, Flatten or Replace; on the SC02 it is Clean or Spread. On the SC01, if the Replace (empty all litter) cycle started by mistake, the manual says to unplug and reconnect the box to reset it.

5. Keep litter below the MAX line

Both manuals ask you to add clumping litter below the MAX fill line when it is spread flat, and both say not to overfill. The manuals do not tie overfilling to a specific light, but it is worth checking if the red light started right after you topped up the litter. Bring the level back below MAX, then run Flatten (SC01) or Spread (SC02). Use clumping litter only; the SC02 manual lists bentonite, mixed and tofu clumping litter with granules under 0.59 in (15 mm), and the SC01 manual lists all clumping litter under 15 mm. For more on depth, see how deep cat litter should be.

6. Check the floor

Both manuals ask for a firm, level surface with a little space around the box, not touching any walls. Soft, uneven or unstable flooring can affect how well the unit detects your cat. Put litter mats or rugs in front of the box, never partly or fully under it. If the box is on carpet, move it.

How to reset a Meowant SC01 or SC02

There are three kinds of reset, and most problems only need the first one.

1. Power cycle. Fix the cause first, then unplug the box and plug it back in. The drum rotates a full circle and returns to Home. When the status light is solid blue, it is ready.
2. Turn off child lock. If the buttons do nothing, child lock may be on. On the SC01, press Replace twice. On the SC02, hold Spread for 3 seconds. The status light flashes green twice when it switches.
3. Factory reset. Hold Clean and Flatten (SC01) or Clean and Spread (SC02) together for 5 seconds. The status light stays solid blue while the button lights flash. Afterwards you need to pair the box with the app again, so use it only when a power cycle has not helped or when you are moving the box to another phone or account.

If the same red light keeps coming back after you have checked the parts it points to, contact Meowant customer support rather than opening the base. Both manuals say there are no user-serviceable parts inside.

SC01 and SC02 weight limits: what the numbers mean

The manuals list a cat range and a separate machine load. They are easy to mix up.

The 44 lb max load describes what the machine is built to carry. It is not a cat weight, and you should not read it as permission to use the box for a larger cat. The cat ranges are the figures to follow.

There is no "overweight" light: the red light reacts to a cat or weight being present during a cycle, not to how heavy the cat is. A cat at the top of the range will simply find the drum snug. The minimum matters too, because the box has to be able to detect a small kitten. For more on that, read whether a kitten's weight will trigger the safety sensor.

If your cat is near or above the limit

If your cat is close to 18 lbs on an SC01 or 22 lbs on an SC02, or still growing, look at the Meowant SC09 (MW-SC09). It was upgraded from the SC02, supports cats weighing 3.3–30 lbs, and has an 8.27-inch low entrance with a fully enclosed chamber. If your cat prefers an open box, the Meowant SC10 (MW-SC10) is an open-top alternative with a long litter bed. Neither is better than the other; the choice depends on whether your cat likes privacy or open space. Our large-breed litter box guide covers sizing for Maine Coons and similar cats.

Where are the sensors on the SC01 and SC02?

The SC01 manual marks the weight sensors at the bottom of the base, under the drum. The SC01 product page describes 10 high-precision sensors and the SC02 product page describes 9 sensors with an anti-pinch structure; the SC02 manual does not mark individual sensor positions. On both, detection depends on the box sitting level on a firm floor. For a full, model-by-model guide to sensor locations, full-bin alerts and safe sensor cleaning, see Meowant litter box sensor locations and full-bin alerts.

Is the Meowant SC01 or SC02 safe for cats?

Both boxes are designed to stop the drum whenever they detect a cat or weight during a cycle, and the SC01 also stops when an object comes close. That is the behaviour behind most red lights. To keep it working as intended, follow the manuals' basic rules:

• Use the box only for cats that weigh at least about 3 lbs and are 4 months or older.
• Place it on a firm, level surface, never on carpet, with mats in front rather than underneath.
• Do not force your cat into the box, sit on it or put things on top of it.
• Unplug the box before removing parts or cleaning it, and never rinse or immerse the base.

Using the app's weight and visit data

The SC01 and SC02 work with control buttons alone, or with the Meowant app for more options. The product pages say the app tracks your cat's weight and activity for up to 6 cats. Treat the numbers as trends rather than a vet scale. A sudden rise in visits, long stays in the box or a steady weight loss are worth a call to your vet. According to the Cornell Feline Health Center, changes in litter box habits are often an early sign of a medical problem. If your cat is straining and producing little or no urine, treat it as an emergency and get veterinary care right away.

Keeping SC01 and SC02 alerts to a minimum

• Replace the liner every 3 to 5 days, depending on the number and size of your cats. Spread the new liner evenly and smooth out the edges. Compatible Meowant litter box liners fit both models.
• Empty the waste bin before you empty or replace all the litter.
• If waste is not reaching the bin, check that the deodorization cover is not blocked by the liner, litter or waste.
• Clean the inside every one to three months. Rinse the drum and the waste bin, wipe the base with a soft, slightly damp cloth, and dry everything before reassembling.

For other faults, such as Wi-Fi pairing, leftover clumps or odor, the automatic litter box troubleshooting guide walks through each one.

References

• Meowant user manuals (SC01, SC02 and other models)
• Cornell Feline Health Center - House Soiling

Disclaimer: This article is for general information and does not replace veterinary advice. If your cat's weight or litter box habits change, consult a qualified veterinarian.
