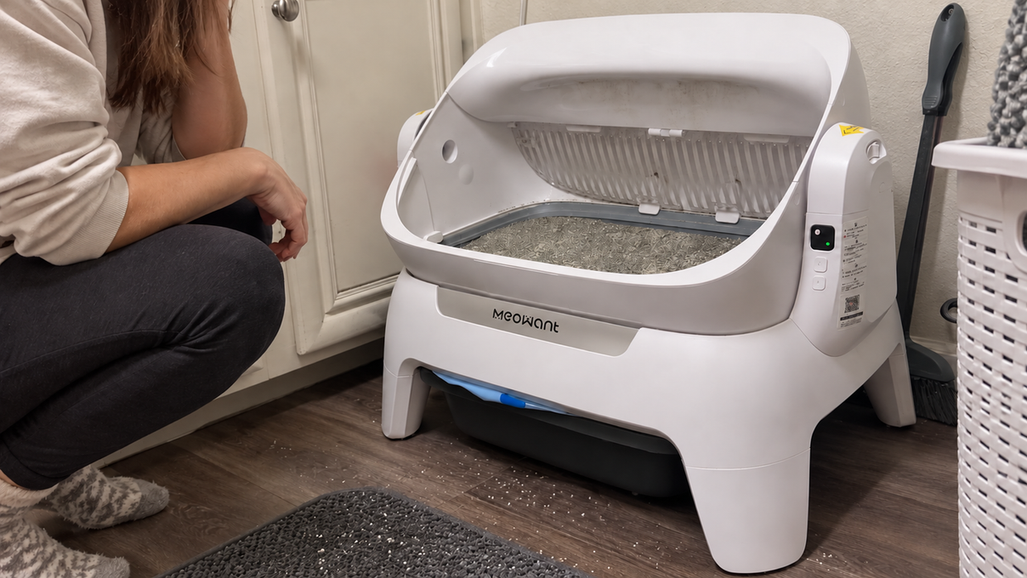

What Should I Do If My Meowant MW-SC10 Stops Turning Mid-Cycle?
If your Meowant MW-SC10 stops turning during a cleaning or emptying cycle, keep your cat away from the unit and look at the display before disconnecting power. The indicator usually points you toward the right check: a blocked infrared sensor, an unlocked side cover, a motor error, or an incorrectly seated drum.
Most accessible causes can be checked without opening the base or attempting a repair. The safe sequence is: record the indicator, unplug the unit, inspect the normal removable parts, reassemble everything correctly, and run one supervised cycle.
Start with the indicator on the display
Do not force the drum to turn. First, note which indicator is illuminated, its color, and whether it is solid or flashing. Taking a photo can make the pattern easier to compare and gives Meowant support useful information if the issue continues.
The model-specific meanings below come from the official MW-SC10 user manual, which should take priority over generic troubleshooting advice.
| Code | What you see | What it means | First area to check |
|---|---|---|---|
| E1 | Waste-drawer indicator flashing red | Infrared sensor blocked | Sensor area, dust or litter, and waste drawer |
| E2 | Drum indicator flashing orange | Side cover not in place | Both side covers and locking switches |
| E3 | Cat-detection indicator flashing red | Motor error | Rotating shaft area and visible obstruction |
| E4 | Drum indicator flashing red | Drum not in place | Drum seating on the base |
The code tells you where to begin; it does not mean you need to access internal electronics. After recording it, unplug the power adapter by holding the plug rather than pulling the cord.
If no error code appears, use the same inspection order below. A clump or loose object at the rotating shaft, a blocked infrared sensor, or an incorrectly installed drum or cover can still interrupt a cycle.
Check the accessible parts in five steps
With the MW-SC10 unplugged, work through these checks in order.
1. Remove the side covers and drum
Slide the switches on both side covers to the ON position to unlock them. Remove the covers, then lift the drum from the base. This is the normal access used for cleaning. Do not remove fasteners or open the base.
2. Inspect the rotating shaft area
Look for a visible litter clump, loose litter, liner material, or another foreign object where the drum turns. Remove only material that is accessible through the normal drum-removal opening. Do not use the drum as a lever or force the shaft to rotate.
An E3 motor error can appear when the unit cannot move normally. Clearing a visible obstruction is appropriate; disassembling or repairing the motor is not.
3. Clean the infrared sensor area
Check for dust, litter, or another object covering the infrared sensor. Gently clear the obstruction while keeping water out of the base and electrical components.
If E1 appeared, also check whether the 11.9 L waste drawer is full. Empty the drawer if needed and spread a fresh liner evenly inside it. Tuck the liner into the rim slots so excess material cannot interfere with the drum.
4. Reseat the drum
Place the drum squarely on the base. An incorrectly seated drum can produce E4 or prevent the cycle from completing. Make sure no litter or loose material sits between the drum and its normal supports.
5. Refit and lock both side covers
Attach both side covers and slide their switches to the OFF position to lock the drum in place. Confirm that the waste drawer is fully inserted and the unit stands firmly on all four legs.
Run one supervised test cycle
Before reconnecting power, make sure no hand, tool, or loose object remains inside the unit. Keep your cat out of the area during the test.
Reconnect the supplied power adapter. After power is restored, the drum should complete its initialization and return to the Home position. If that completes normally and the error disappears, start one cleaning or emptying cycle and observe it from outside the moving area.
The MW-SC10 can return to normal use when all of the following are true:
- the drum completes the cycle without stopping;
- the drum returns to its Home position;
- E1, E2, E3, or E4 does not remain or return;
- the side covers stay locked and the unit remains stable; and
- there is no scraping, grinding, damaged part, or unusual movement.
For the next few uses, keep an eye on the display and listen for a change from the unit's normal sound. A one-time clump or sensor obstruction may be fully resolved once it is removed. A repeating stop needs support rather than repeated resets.
When to contact Meowant support
Leave the MW-SC10 unplugged and contact Meowant when:
- the drum stops again during the supervised test;
- E1 remains after the sensor area and waste drawer are cleared;
- E2 remains after both side covers are fitted and locked;
- E3 remains or returns after accessible obstructions are removed;
- E4 remains after the drum is correctly reseated;
- an object cannot be removed through normal cleaning access;
- the cord, plug, drum, cover, shaft area, or base appears damaged; or
- the next step would require opening the base, bypassing a sensor, or forcing the drum.
Email support@meowanthome.com and include the model name, a photo of the indicator, where the drum stopped, and the steps you completed. That information usually makes the next diagnosis faster.
The MW-SC10 is designed so routine cleaning parts—the drum, waste drawer, fabric pad, side covers, and visible sensor area—are accessible to the owner. Internal components are not user-serviceable. Staying within those normal access points protects both the machine and your cat while giving you the best chance of clearing a simple mid-cycle interruption quickly.
Related reading:
- Why Does My Automatic Litter Box Say the Drawer Is Full When It Isn’t?
- What Waste-Drawer Capacity Should You Choose for an Automatic Litter Box?
- Best Smart Features to Look for in a Self-Cleaning Cat Litter Box
FAQs
Should I unplug the MW-SC10 if it stops mid-cycle?
First keep your cat away and record the illuminated or flashing indicator. Then unplug the unit before removing the side covers, lifting the drum, or clearing an accessible obstruction. Recording the display first preserves useful diagnostic information.
Can I turn the MW-SC10 drum by hand?
Do not force the drum or use it as a lever. Forced rotation can damage the drive system and does not resolve the sensor, cover, drum-seating, or motor condition that caused the stop. Use only the normal removal and reinstallation steps.
What commonly causes the MW-SC10 to stop turning?
Common accessible causes include a blocked infrared sensor, a full or incorrectly lined waste drawer, unlocked side covers, an incorrectly seated drum, or a visible clump or object near the rotating shaft. The display code helps identify which area to inspect first.
Will the MW-SC10 reset after I reconnect the power?
After correct reassembly and reconnection, the drum should initialize and return to its Home position. A successful initialization is encouraging, but repeatedly restarting the unit is not a fix if an error, abnormal sound, or mid-cycle stop returns.
When should I contact Meowant support?
Contact support if an error remains after the permitted checks, the drum stops again, a part or power cord looks damaged, an obstruction is inaccessible, or the next step would require opening the base. Include the model, indicator photo, stop position, and checks already completed.
